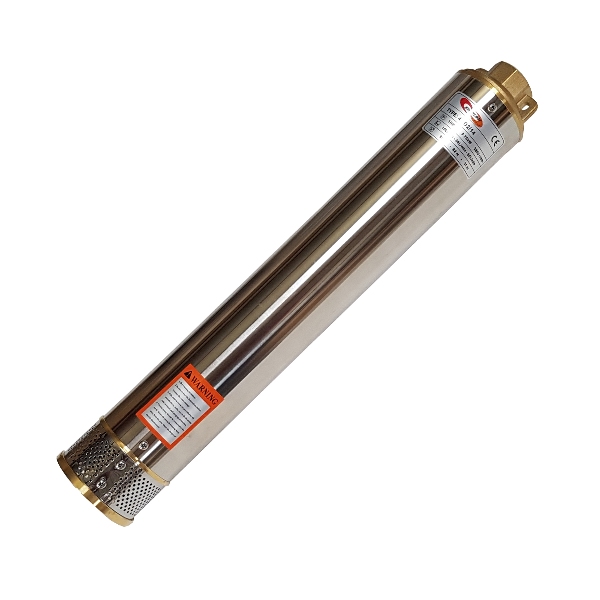

4SD2/15 Borehole Submersible Pump End Only 0.75KW
R 1,219.00
SKU:hup-4sd2/15
Product Details
The Hurricane 4SD2/15 borehole submersible pump end requires a 0.75Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 98m. \nOperating Conditions
\n-
\n
- Maximum fluid temperature : up to 35°C \n
- Maximum sand content : 0.25% \n
- Minimum borehole diameter : 4" (10.16cm) \n
Motor & Pump
\nSingle Phase : 220V - 240V 0.75KW 1HP / 50Hz or \n Three Phase : 380V - 415V 0.75KW 1HP/ 50Hz \n Equip with either a standard (manual) or an automatic control box 0.75KW 1HP (water level sensors) \nWarranty : 12 Month
\nAccording to our general sales conditions \nSpecifications
\n-
\n
- Speed : 2850RPM \n
- Power : 0.75KW \n
- Power : 1HP \n
- Outlet : 32mm \n
- Pump Diameter : 100mm \n
- Pump Length : 577mm \n
- Pump Wieght : 5KG \n

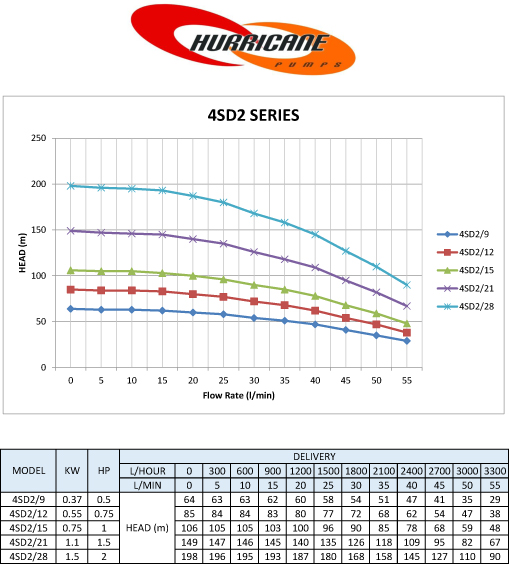

Water Delivery Pump Curve
\n
