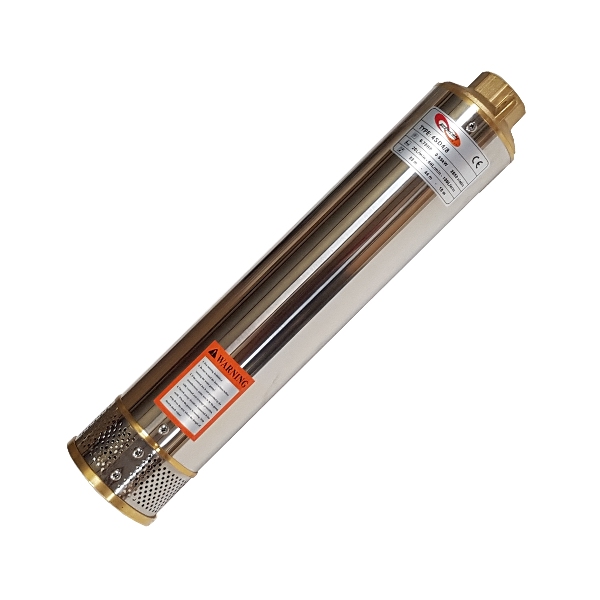

4SD4/8 Borehole Submersible Pump End Only 0.55KW
R 1,035.00
SKU:hup-4sd4/8
Product Details
The Hurricane 4SD4/8 borehole submersible pump end requires a 0.55Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 55m. \nOperating Conditions
\n-
\n
- Maximum fluid temperature : up to 35°C \n
- Maximum sand content : 0.25% \n
- Minimum borehole diameter : 4" (10.16cm) \n
Motor & Pump
\nSingle Phase : 220V - 240V 0.55KW 0.75HP / 50Hz \n Equip with either a standard (manual) or an automatic control box 0.55KW 0.75HP (water level sensors) \nWarranty : 12 Month
\nAccording to our general sales conditions \nSpecifications
\n-
\n
- Speed : 2850RPM \n
- Power : 0.55KW \n
- Power : 07.5HP \n
- Outlet : 32mm \n
- Pump Diameter : 100mm \n
- Pump Length : 426mm \n
- Pump Wieght : 4KG \n

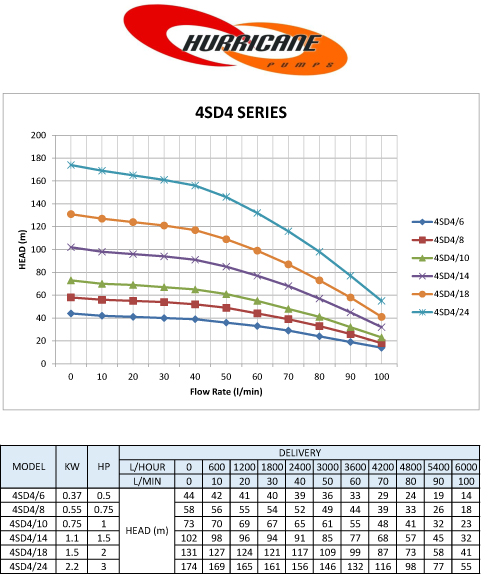

Water Delivery Pump Curve
\n[caption id="attachment_4835" align="alignnone" width="491"]
4SD4 Series Curves[/caption]
