4SD2/12 Borehole Submersible Pump End Only 0.55KW
R 1,138.50
SKU:hup-4sd2/12
Product Details

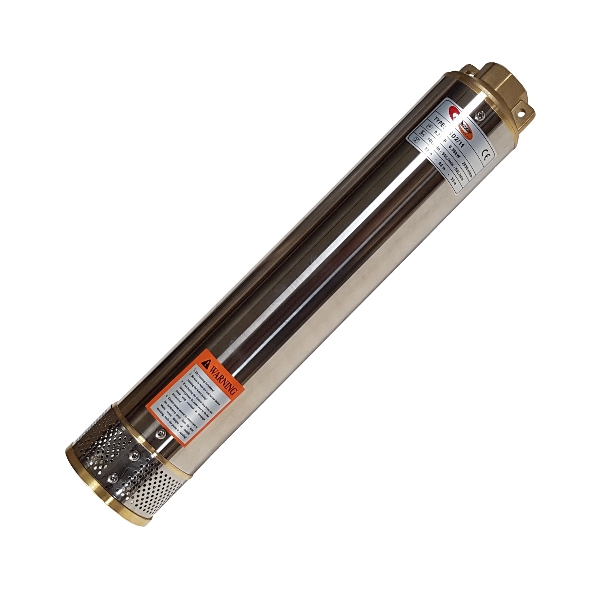

The Hurricane 4SD2/12 borehole submersible pump end requires a 0.55Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 77m. \nOperating Conditions
\n-
\n
- Maximum fluid temperature : up to 35°C \n
- Maximum sand content : 0.25% \n
- Minimum borehole diameter : 4" (10.16cm) \n
Motor & Pump
\nSingle Phase : 220V - 240V 0.55KW 0.75HP / 50Hz or \n Equip with either a standard (manual) or an automatic control box 0.55KW 0.75HP (water level sensors) \nWarranty : 12 Month
\nAccording to our general sales conditions \nSpecifications
\n-
\n
- Speed : 2850RPM \n
- Power : 0.55KW \n
- Power : 0.75HP \n
- Outlet : 32mm \n
- Pump Diameter : 100mm \n
- Pump Length : 503mm \n
- Pump Wieght : 4.3KG \n

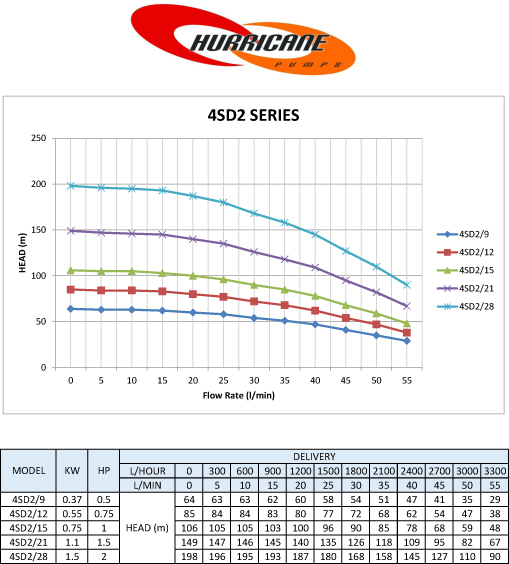

Water Delivery Pump Curve
\n
